Types of Sailboat Keels: How to Choose the Right One?

Dreaming of your own sails, of the salty wind on your face and the boundless freedom that the sea gives? Perhaps you imagine yourself at the helm of a yacht, confidently leading it towards new horizons, sharing this adventure with family and friends. But often, doubts arise on the path to the dream: "Can I do it? It's probably very difficult and expensive... How do I even figure all this out?" The world of what yachting is is indeed full of its unique yachting terminology and many nuances, and one of the first questions a future skipper faces concerns the structure of the yacht. For example, what is a keel on a yacht and why is it so important?

This article is your friendly guide to the world of yacht keels. We will not load you with complex theory, but will try to simply and clearly explain what types of keels there are, how they differ, and how they affect the behavior of the yacht. Understanding these basics will not only dispel many fears, but will also make your future Sailing Training more conscious and exciting. After all, knowledge is the first step to confidence, and confidence is the key to the helm. And believe us, the journey from a dream to independently commanding a yacht is much more accessible than it seems, especially if you have experienced mentors by your side who speak the same language.

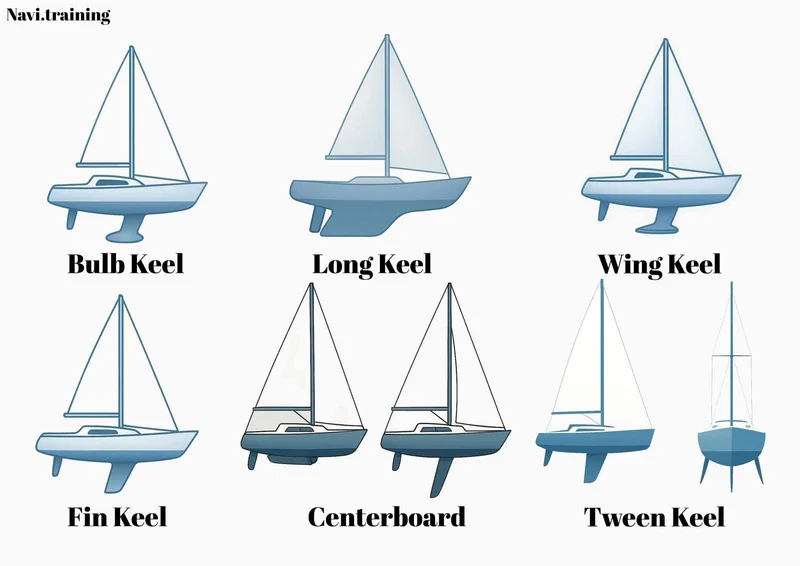

What is a keel on a yacht and why is a yacht not a yacht without it?

Imagine a sailing yacht. The part of it that is hidden underwater and resembles a large fin or blade is the keel. It can safely be called the underwater "spine" of the vessel, because it performs two vital functions, without which a yacht simply cannot sail safely and effectively.

The first, and perhaps most obvious, function of the keel is stability, that is, the ability of the yacht to resist overturning. Remember a child's roly-poly toy: no matter how you tilt it, it returns to a vertical position. A similar principle works on a yacht. Heavy ballast is often placed in the keel, especially in its lower part – usually lead or cast iron. This ballast significantly shifts the center of gravity of the entire yacht downwards. When the wind presses on the sails and tries to heel the yacht, the low center of gravity creates a "righting moment" – a force that seeks to return the yacht to a level position. It is thanks to this that yachts can sail with a significant heel without capsizing. The second key function of the keel is drift resistance. When the wind blows sideways on the yacht, it not only pushes it forward, but also tries to carry it sideways (this is drift). The keel, having a large lateral area, works underwater like a wing, creating hydrodynamic resistance to this lateral displacement. Thanks to this, the yacht can sail not only downwind, but also at a rather sharp angle to it – this is called yacht tacking. Without a keel, the yacht would be just a toy of the wind, unable to move against it. Simply put, water flows around the keel, and on its windward side, increased pressure is created, and on the leeward side, reduced pressure. This pressure difference creates a force directed against the drift, allowing the yacht to hold its course. Understanding these two basic functions of the keel – yacht stability and drift resistance – removes one of the first barriers on the path to Yachting for Beginners: the fear of complexity. The physics of the process becomes clearer, and with it comes initial confidence. After all, a yacht is not magic, but a well-designed engineering structure, where every element, including the keel, serves your safety and the ability to control the vessel.

Long keel yacht – a reliable companion in the ocean of tradition

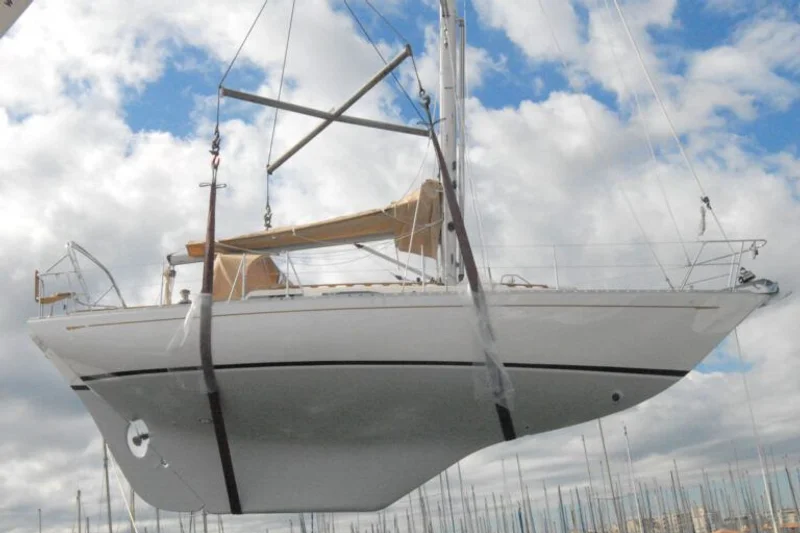

The Long keel (in English long keel) is a classic of yacht building, proven by time and thousands of nautical miles. Imagine a keel that is smoothly integrated into the yacht's hull and extends for a significant part of its length, sometimes from the very bow to the stern, forming a single unit with the hull. Ballast in such designs is often placed inside the keel itself or is an integral part of it. Advantages of a long keel:

• Outstanding directional stability: Yachts with a long keel hold their course perfectly, especially in downwind passages and in heavy seas. They "yaw" less (deviate from course) and require less intervention from the helmsman.
• Smooth ride in waves: Thanks to its shape and mass, a long keel helps the yacht ride more smoothly through waves, providing comfortable sailing even in rough seas. This is especially valuable on long passages.
• Strength and reliability: The hull-integrated design is considered very strong and withstands accidental groundings better than other keel types.
• Protection of rudder and propeller: The long keel often extends below the rudder and propeller, providing them with additional protection from damage upon contact with the bottom or floating objects.

Disadvantages of a long keel:

• Maneuverability: Such yachts have a large turning radius and are less willing to turn. Maneuvering in tight marinas or narrow spaces, which often involves complex Mooring procedures (our guide on mooring for beginners offers detailed steps), can be difficult, especially for a beginner.
• Draft: As a rule, yachts with a long keel have a large yacht draft (depth of immersion), which limits access to shallow bays and anchorages.
• Speed: The large wetted surface area of the keel creates significant hydrodynamic drag, which affects speed, especially in light winds and when sailing on sharp angles to the wind (tacking).
• Handling in reverse: Sailing backwards on a long-keel yacht can be quite unpredictable and requires skill. Who is a long keel suitable for? It is ideal for those who plan long offshore and ocean passages, prioritizing seaworthiness, comfort in heavy seas, and predictable yacht behavior. Often, such keels can be found on classic cruising yachts built for serious voyages. For those who dream of "real" maritime adventures and value thoroughness and safety, this type of keel – the long keel yacht – can seem very attractive. It is important to understand that a long keel is not just an "old" type; it is a whole philosophy of seafaring focused on endurance and comfort in the open sea. Although a long keel can forgive some errors by the helmsman due to its inertia and directional stability, its maneuvering characteristics, especially in marinas, require special attention during training. This is exactly the case when practical skills acquired in a good sailing school, typically through structured yachting courses, under the guidance of an experienced instructor become invaluable.

Fin keel – maneuverability and speed of modern yachts. Bulb keel, wing keel.

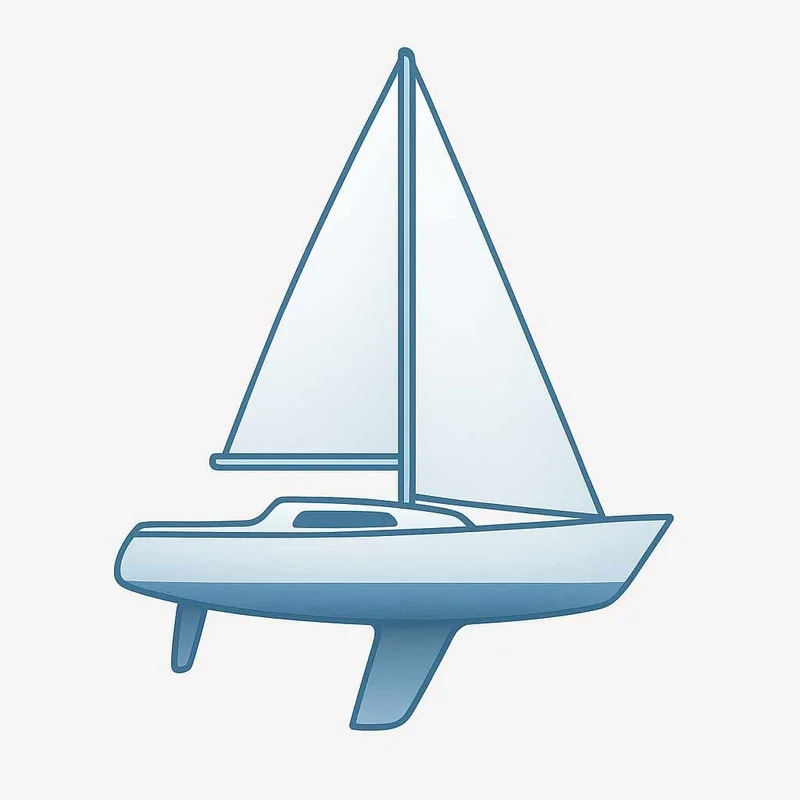

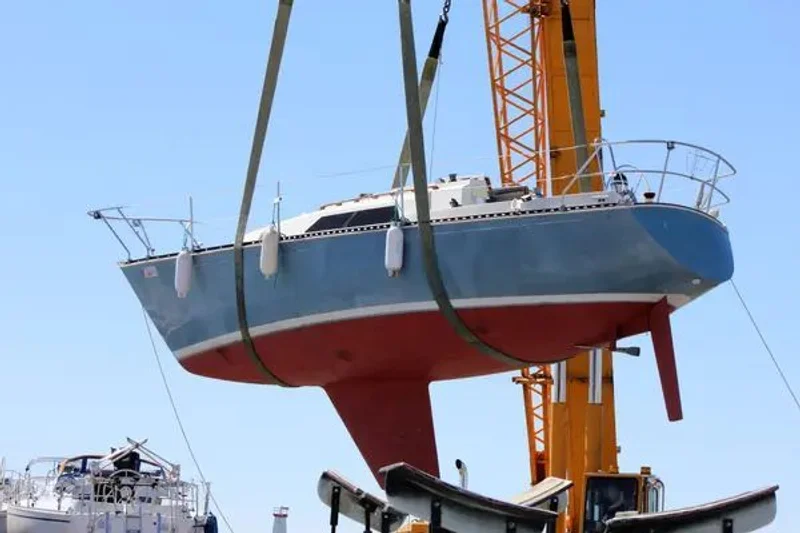

The Fin keel (in English fin keel) is probably the most common type of keel on modern types of sailing yachts, from cruisers to racers. Unlike a long keel, it is a separate element, resembling a fin or blade, which is attached to the bottom of the hull, usually with strong bolts. Fin keels are usually shorter in length along the hull, but can be quite deep. There are several common variations of the fin keel:

• Standard fin keel: A simple vertical "blade" that provides lateral resistance and carries ballast.
• Bulb keel (Bulb keel): This is a fin keel with a tear-drop or torpedo-shaped weight at its lower end – the bulb. The bulb allows concentrating the ballast mass as low as possible. This increases the yacht's stability, allowing either to reduce the total mass of the keel (and thus the draft or the total weight of the yacht), or to increase the sail area with the same stability.
• Wing keel (Wing keel): A modification of the fin keel, at the base of which are located horizontal "wings". These wings help increase stability and reduce drift, while often allowing the keel to be made shallower, i.e., to reduce the yacht's draft. This can be useful for sailing in shallow waters. Advantages of a fin keel:
• Maneuverability: Yachts with fin keels are very responsive to the rudder, have a small turning radius, and maneuver easily, which is especially valuable in marinas and when docking.
• Speed: A smaller wetted surface area compared to a long keel means less hydrodynamic drag, which contributes to achieving higher speeds, especially on upwind courses.
• Windward performance: Yachts with fin keels generally perform better upwind (tack closer to the wind).

гра

Disadvantages of a fin keel:

• Directional stability: Such yachts are less stable on course than yachts with a long keel. They require more active and attentive steering to maintain a desired direction.
• Comfort in waves: The ride in waves can be more abrupt and "nervous"; the yacht reacts more actively to the sea state.
• Mounting strength: Since the fin keel is attached to the hull with bolts, this connection can be a vulnerable point in case of severe impacts with the bottom or underwater obstacles. While modern technologies ensure high reliability of such mountings, the risk of damage still exists. Who is a fin keel suitable for? It is the standard for most modern cruising and racing yachts. It is ideal for those who value speed, maneuverability, and sporty qualities. Most charter yachts that you will likely encounter during training or independent sailing will be equipped with fin keels or their variations. Understanding the characteristics of a fin keel is critically important, as it is the most likely type of keel you will encounter when you begin yachting. Its "responsiveness" and maneuverability require the skipper to have good handling skills, which are acquired during practical training in a sailing school. Variations of the fin keel, such as bulb keels or wing keels, are examples of how designers are constantly looking for optimal solutions, finding compromises between stability, draft, and sailing performance. This shows that the world of yachts is constantly evolving. Speaking of safety, it is worth mentioning that although cases of severe damage or detachment of a fin keel are rare, such a possibility exists with very strong impacts on obstacles. This is not a reason for panic, but a reminder of the importance of careful navigation, knowing your vessel, and the safe navigation skills that are given primary attention in good sailing schools, such as Navi.training.

Lifting keel, bilge keels – when size (yacht draft) matters

In addition to classic long and fin keels, there are several interesting designs whose main purpose is to reduce the yacht draft, i.e., the depth of the underwater part's immersion. This provides access to shallow water areas, rivers, canals, and allows getting closer to the shore.

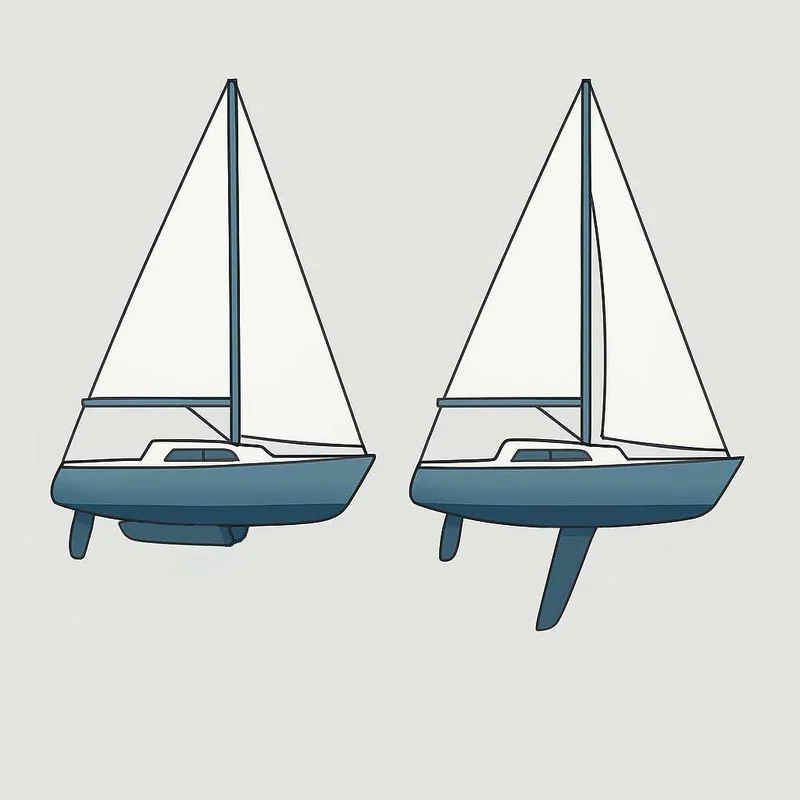

Lifting and swing keels (daggerboards and centerboards):

These terms are often used as synonyms, but can refer to slightly different designs. What they have in common is that the main element responsible for resisting drift can be retracted into the hull or rotated, reducing the draft.

• Design:

    * Daggerboard (Centerboard/Daggerboard): This is a retractable plate (daggerboard, daggerboard) or one that rotates around an axis (pivoting or sectoral daggerboard, centerboard), which is retracted into a special watertight trunk in the yacht's hull – the centerboard trunk. Daggerboards can be light, made of wood, metal, or composite, and then they primarily serve to resist drift. There are also ballasted daggerboards – weighted daggerboards that additionally contribute to stability.

    * Swing keel (Swing keel): In essence, this is a pivoting ballasted daggerboard which, when retracted, pivots back and up, often partially remaining under the bottom or retracting into a shallow recess. Such lifting keels expand cruising possibilities.

• Lifting Mechanisms: Can be manual (using tackles), using winches, screw mechanisms, or hydraulics, especially for heavy ballasted versions.
• Advantages:

    * The main advantage is a significant reduction in draft, which allows access to shallow water, approaching unprepared shores, passing through canals and rivers, and also simplifies yacht transportation on a trailer. This is a key advantage that a lifting keel provides.

    * If you run aground, it is often enough to simply lift the keel to get off.

• Disadvantages:

    * More complex design compared to fixed keels.

    * The centerboard trunk occupies valuable space inside the yacht and is a potential source of leaks.

    * Risk of damage to the lifting mechanism or jamming of the daggerboard.

    * A light (unballasted) daggerboard does not add to stability; on the contrary, when lifted, the yacht's center of G aumenta, which can reduce stability. Ballasted daggerboards are heavier, and lifting them requires more effort or more complex mechanisms.

• Who they suit: Yachts for sailing on inland waterways, in coastal areas with limited depths, trailerable yachts, as well as so-called compromise yachts, which combine a small fixed keel and a retractable daggerboard. The complexity of the design, for example, lifting keels, and their potential problems...

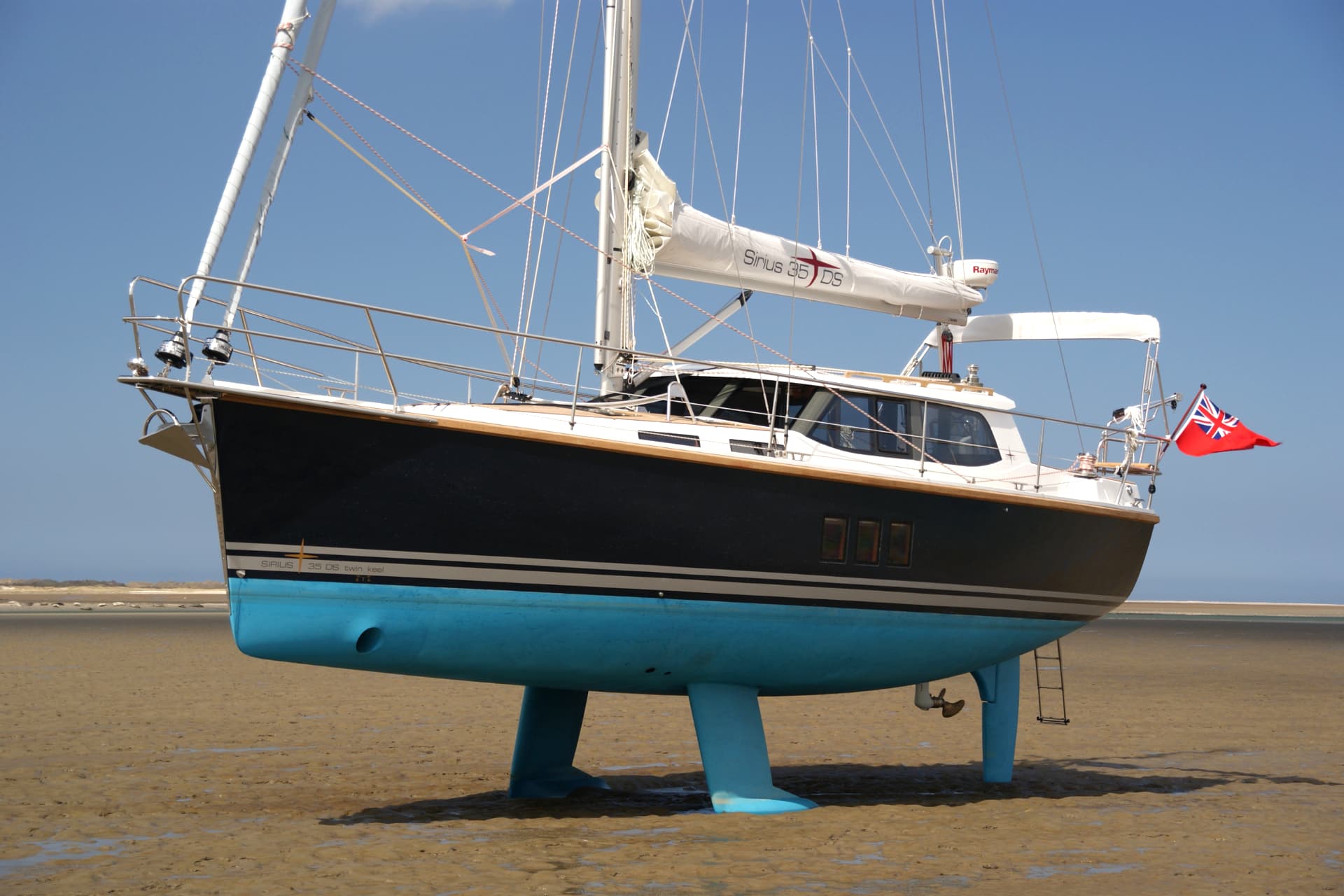

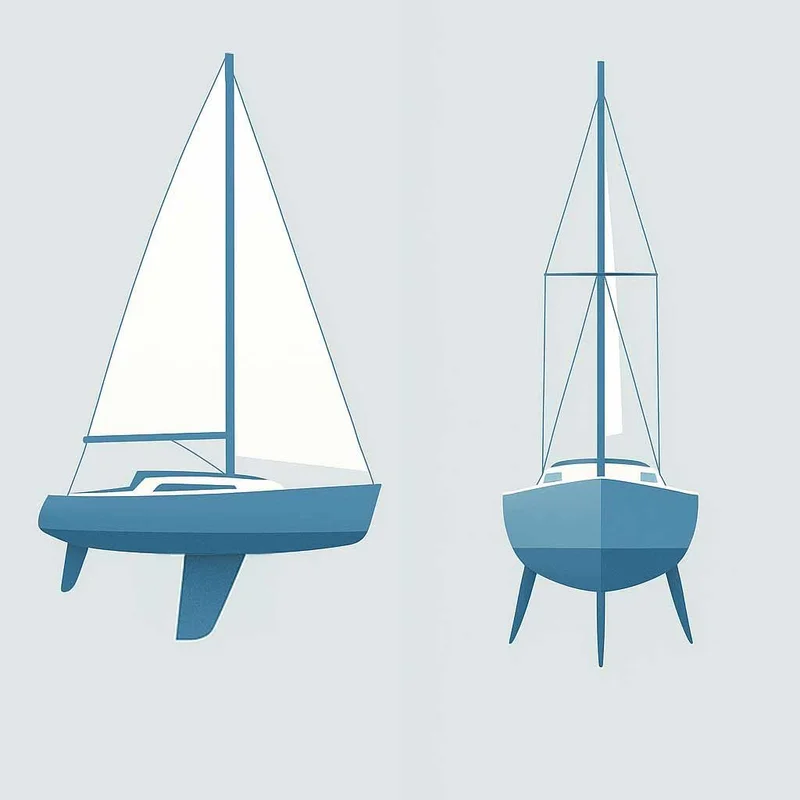

Bilge (twin) keels (Bilge keels/Twin keels):

• Design: These are two separate keel plates installed on the sides of the yacht's hull, usually slightly angled outwards. These are bilge keels.
• Advantages:

    * The main advantage is the yacht's ability to stand on the ground during low tide without additional supports, resting on two keels and often on the stern part of the hull or a special third support element.

    * Reduced draft compared to a single central keel, providing comparable stability and lateral resistance.

• Disadvantages:

    * Usually, such yachts are less efficient on upwind courses and may have higher hydrodynamic drag (larger wetted surface area) compared to yachts with a single deep keel.

• Who they suit: Particularly popular in regions with large tidal variations in water level, for example, off the coasts of England, Ireland, and Northern France. Bilge keels are ideal for such conditions.

Understanding these "specialized" types of keels broadens the horizons of a beginner yachtman and shows the full diversity of design solutions in the world of sailing yachts. This can be particularly relevant if you plan to sail in specific regions with shallow water or large tides. The complexity of the design, for example, lifting keels, and their potential problems (leaks, mechanism failures) also emphasize the importance of good yacht maintenance and the need to be prepared for possible emergency situations – another aspect that is given primary attention in good sailing schools such as Navi.training.

How the keel affects your experience of sailing: understanding yacht stability, comfort, and yacht handling

Choosing or understanding the type of keel is not just a technical issue. The keel's design directly affects how the yacht will behave on the water, how comfortable and safe your sailing will be, and how easy it will be for you to control it. Let's look at the main aspects: Yacht stability, yacht handling, and yacht tacking.

• Yacht stability (Stability):

    This is the yacht's ability to resist heel (leaning under wind pressure on the sails) and return to an upright position. The keel plays a key role here due to the ballast located in it, which lowers the vessel's center of gravity.

    * Long keels and bulb keels (where the ballast is most concentrated at the bottom) usually provide high stability, both initial (resistance to heeling at small angles) and ultimate (ability to recover after very large heels).

    * Fin keels are also stable, but their behavior can be more "lively".

    * Light daggerboards (unlike ballasted ones) do not add to stability on their own; on the contrary, when lifted, the yacht's center of G aumenta, which can reduce stability. The stability of daggerboard boats depends more on the hull width and proper hiking/leaning out by the crew.

• Comfort in waves (Comfort in waves):

    How the yacht handles waves greatly affects the crew's experience.

    * Long keel: Generally provides a smoother and "softer" ride. A yacht with such a keel is less prone to sharp rolling and pitching, which makes sailing more comfortable, especially on long passages and in head seas.

    * Fin keel: The ride can be more "stiff" and fast. The yacht reacts more actively to the sea state, which may be less comfortable for some, but provides a more sporty feel.

    * Bilge keels: Can contribute to reducing rolling, making the ride more stable.

• Yacht handling and maneuverability (Handling and Maneuverability):

    This is the ability of the yacht to change course and react to rudder input.

    * Fin keel: Provides high maneuverability, a small turning radius, and quick reaction to the rudder. This facilitates maneuvering in confined spaces, for example, in marinas (with sufficient experience).

    * Long keel: Such yachts are more inertial, have a large turning radius. This makes maneuvering in narrow channels and handling in reverse more difficult. However, their predictability on course can be an advantage. Your yacht handling directly depends on its type.

• Windward performance or yacht tacking (Windward performance):

    This is the ability of the yacht to effectively sail against the wind (at a sharp angle to it).

    * Fin keels: Usually provide better windward performance, allowing to sail closer to the wind with less sideways slip (leeway).

    * Long keels: May have more leeway and be less efficient when tacking compared to modern fin keels.

• Yacht draft and access to shallow waters:

    The type of keel directly determines the minimum depth required for sailing.

    * Long and deep fin keels: Large yacht draft, limits access to shallow water.

    * Short fin, wing, bilge, and lifting/swing keels: Allowreducing draft and open up more opportunities for exploring shallow bays and coastal areas.

It is important to understand that the feeling of handling a yacht is not some abstract concept, but a direct result of its design features, and the keel plays one of the main roles here. There is no "ideal" keel for all situations. The choice always represents a compromise between different qualities: speed and comfort, maneuverability and directional stability, the ability to sail in deep water or enter shallow areas. Different types of keels may also require slightly different approaches to handling, especially in difficult weather conditions or when maneuvering in confined spaces. This once again emphasizes the value of quality practical training in a sailing school, where you can not only gain theoretical knowledge, but also practice handling skills.

Choosing "your" keel (types of keels): advice for a beginning captain for training and first charter

When you are just starting your journey in yachting, the question of choosing a yacht, and therefore the type of its keel, can seem complex. Which of the types of keels is more forgiving for a beginner? What should you pay attention to when choosing a training yacht or a boat for your first independent charter?

Which keel is more forgiving for a beginner?

For a beginning skipper, important qualities of a yacht are predictable behavior, good stability, and the ability to "forgive" some inaccuracies in handling.

• Long keels, due to their inertia and high directional stability, are often considered more lenient towards rudder errors. A yacht with such a keel reacts slower to wind gusts or clumsy helm movements, giving the beginner more time to make the correct decision.
• Moderate fin keels, especially on well-balanced cruising yachts, can also be a good choice. They provide sufficient stability and predictability while being more maneuverable than long keels.
• It is probably best to avoid extreme racing variants with very deep and narrow fin keels or very light daggerboard boats with low stability, which require refined skills and quick reactions.

What to pay attention to when choosing a training yacht:

Most modern sailing schools use cruising yachts with moderate fin keels or their variations (for example, with a small bulb) for training. This is a good compromise that allows mastering the handling of a typical charter yacht. The main thing is that the instructors at the school thoroughly explain the peculiarities of the specific training yacht's behavior related to its keel and provide enough practice.

Recommendations for the first charter:

The first independent charter is an exciting event! To make it go smoothly and leave only positive impressions, especially if your family or friends without yachting experience are on board, you should consider a few points:

• Predictability: If you have a choice, prefer a yacht with a calmer and more predictable temperament. This could be a yacht with a long keel (if you are confident in your maneuvering skills in marinas) or a modern cruising yacht with a moderate fin keel, known for its good stability.
• Draft and waters: Find out in advance about the specifics of the waters where you plan to sail. If there are many shallow bays that you would like to visit, the yacht draft becomes an important factor. However, yachts with a very shallow draft (for example, with lifting keels) may require more experience in handling and maintaining the lifting mechanism itself.
• Familiar type: Ideally, for the first charter, it is best to choose a yacht whose keel type and handling characteristics are similar to the one you trained on.

The role of the instructor and the school:

A good sailing school, such as Navi.training, does not just teach you to tie knots and set sails. Experienced instructors will help you understand these nuances during the training phase. They will explain how the keel type affects the yacht's behavior in various conditions, teach you to feel the boat, and anticipate its reactions. The focus on safety and an individualized approach allows tailoring the program and practical exercises to your level of preparation and goals. For a beginner, it is more important not to find the "best" keel in absolute terms, but to choose the "most suitable" for the current stage – be it training or the first independent voyages. Safety, confidence, and gaining a positive experience at this stage are much more important than chasing racing characteristics or extreme maneuverability. Often, when choosing a yacht for charter, beginning skippers focus on the number of cabins and appearance, overlooking such important parameters as the keel type, draft, and handling characteristics. This article, we hope, will help you pay attention to these aspects as well, increasing your skipper's competence. Part of this competence involves understanding the necessary qualifications, such as the various yachting licenses available, and you might explore different Yacht Licenses to determine the best fit for your sailing ambitions.
